Overview

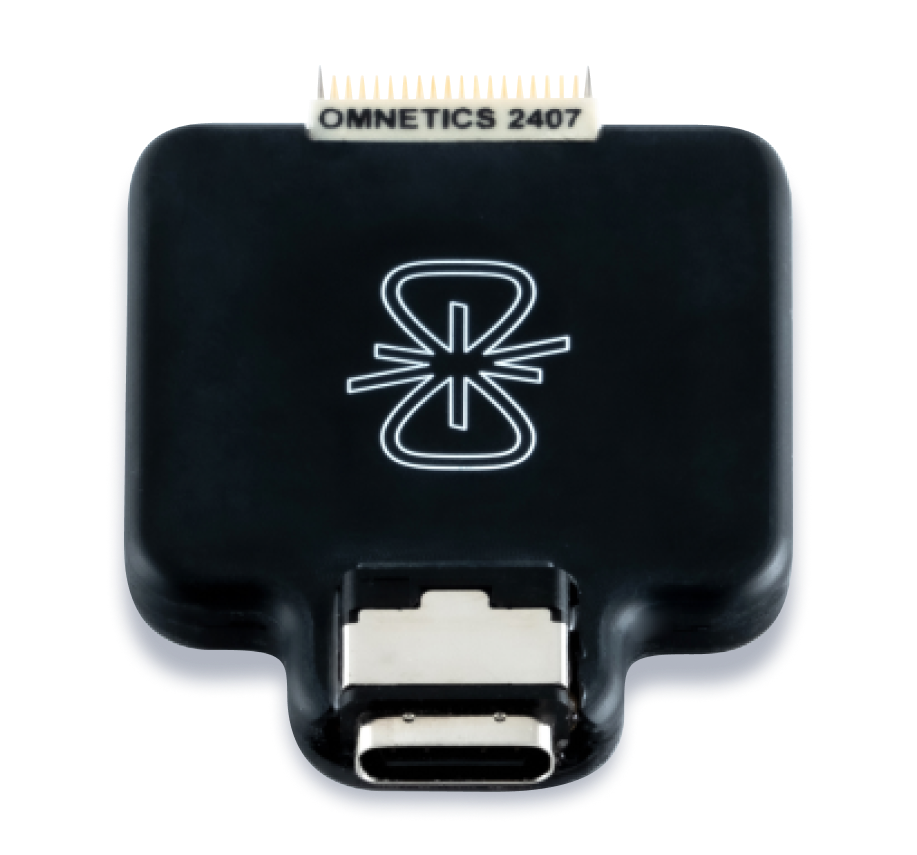

The Axon Omnetics Adapter is a combined digitizer and USB 3.2 Gen 1 serializer with a standard Omnetics A79025-001 connector and Intan RHD2132 neural recording chip that allows the connection of a wide range of off-the-shelf and custom probes with the SciFi headstage. With up to 32 channels of low noise broadband recording, a compact and lightweight footprint, and low power consumption, the Axon Omnetics Adapter is an ideal choice for power- and space-constrained applications.

A omnetics connector is shown connected to an Axon Omnetics Adapter via pin mounting, the adapter is shown connected to a SciFi via USB-C cable, and the SciFi is shown connected to Nexus or the Synapse CLI via WiFi 6.

Download

Download version 1.3 of this datasheet here.

Key Features

Up to 32 recording channels
2.4 µVRMS noise
28 x 35 mm² footprint

Omnetics, Cereplex, Cereport, and Intan are trademarks of their respective owners. Science Corporation's adapters are not affiliated with these companies.
