Overview

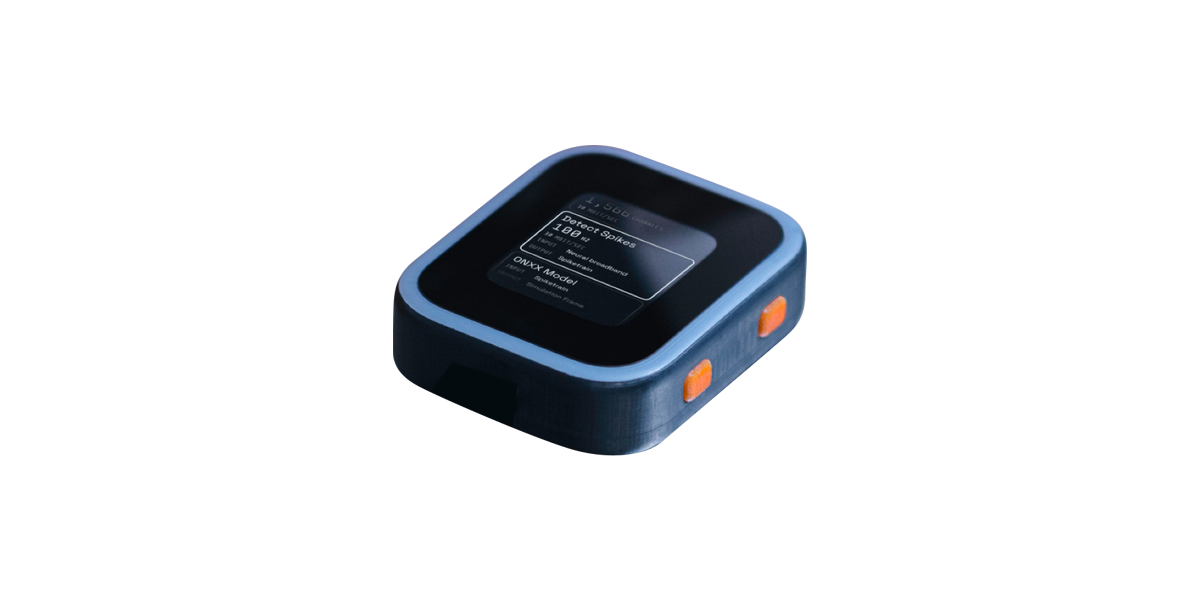

SciFi is a high bandwidth neural recording headstage. It features WiFi 6 (2x2 MIMO) wireless connectivity for ultra-low latency, with flexible antenna configurations (both internal and external). It is ruggedized to meet harsh operating conditions and it is plug and play compatible with Science Axon Probes and the Synapse Protocol.

Download

Download version 1.1 of this datasheet here.

Key Features

• WiFi 6 connectivity for minimal latency and connection speed of up to 2.4 Gbps.
• High contrast OLED display for detailed status and experiment information.
• High visibility RGB light ring for status indication provides information about the device to users who may be some distance away. The light is also customizable by the user for their experiment goals.
• Automatic switching between internal and external WiFi antennas.
• 1400 mAh battery (2–4 hour battery life in active use).
• 128 GB of internal high speed storage available for saving recordings on-device.
• Octa-core processor with integrated GPU: up to 15 TOPS.
• Status indication through LED ring and AMOLED display panel.
• USB Type-C® port for connectivity.

FCC Compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Information: To maintain compliance with the FCC radio frequency exposure limits, body proximity to the antenna shall not be less than 20cm during normal operation.

Omnetics, Cereplex, Cereport, and Intan are trademarks of their respective owners. Science Corporation's adapters are not affiliated with these companies.
